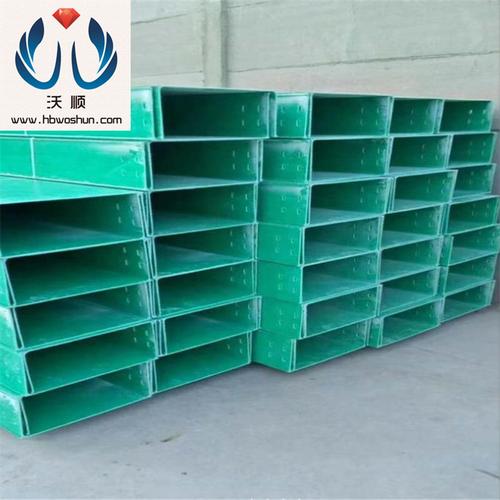

qj-2-槽式、梯级式、托盘式及大跨距汇线玻璃钢桥架全面解析与选型指南

在现代化工业与民用建筑的电气布线系统中，电缆桥架作为支撑和保护电缆的关键设施，其选型直接关系到工程的安全性、耐久性与维护便利性。本文将围绕qj-2-槽式、梯级式、托盘式以及大跨距汇线玻璃钢桥架这几类常见结构，进行系统性的技术解析与应用对比，帮助读者根据实际工况做出合理选择。\n\n## 一、玻璃钢桥架的材料优势\n\n玻璃钢（FRP，纤维增强塑料）桥架以合成树脂为基体、玻璃纤维为增强材料，通过模具拉挤或模压成型。相比传统金属桥架，它具有以下显著特点：\n\n1. 优异的耐腐蚀性能：可抵抗酸、碱、盐及多种有机溶剂的侵蚀，适用于化工、海洋、污水处理等强腐蚀环境。\n2. 轻质高强：密度约为钢的1/4，但机械强度较高，便于运输与安装，可降低支架负荷。\n3. 绝缘性能好：本身不导电，无需额外接地，适合对电磁干扰敏感或要求绝缘的场合。\n4. 阻燃与耐老化：通过添加阻燃剂可达到难燃级别，且抗紫外线老化性能良好，室外使用寿命长。\n5. 设计自由度大：可根据需要灵活调整截面形状、颜色及长度，实现多样化结构形式。\n\n基于这些特性，玻璃钢桥架衍生出槽式、梯级式、托盘式以及大跨距汇线等多种结构，以适应不同电缆敷设需求。\n\n## 二、qj-2-槽式玻璃钢桥架\n\n结构特征：qj-2-槽式桥架采用封闭式槽盒结构，由底板、侧板及盖板组成，形成一个连续的保护腔体。qj-2通常代表特定系列代号，对应对应尺寸与荷载等级。\n\n应用场景：\n- 适用于敷设计算机电缆、通信电缆、热电偶电缆及其他高灵敏度的控制电缆。\n- 用于需要防尘、防潮、防外界机械损伤的场所，如精密仪器室、控制室、地下管廊。\n- 在有腐蚀性气体或液体的环境中，保护电缆免受侵蚀。\n\n优缺点：\n- 优点：密封性好，对电缆保护全面，可屏蔽部分电磁干扰。\n- 缺点：散热条件相对较差，不利于大截面 power 电缆的散热；安装维护时需开启盖板，检修便利性不如梯级式；相比同规格梯级式成本偏高。\n\n选型时需重点关注qj-2对应的宽度、高度及壁厚，确保满足电缆填充率（通常不超过40%）和荷载要求。\n\n## 三、梯级式玻璃钢桥架\n\n结构特征：梯级式桥架外形类似梯子，由两侧边梁与若干横撑（踏辊）组成，横撑之间留有较大空隙。\n\n应用场景：\n- 最适用于敷设直径较大的电力电缆，特别是需要良好散热条件的场所。\n- 常见于 Vertical 竖井、电缆夹层、发电机房、变电站及大型工业厂房。\n- 当需要频繁检修或更换电缆时，梯级式的开放式结构让敷设和更改更为便捷。\n\n优缺点：\n- 优点：重量轻、透气散热好、便于电缆下线与分支、成本相对于同规格槽式较低。\n- 缺点：对电缆的机械保护与防尘防潮能力较弱，在 Environment 恶劣的室外或粉尘较多的车间，电缆外护套易受紫外线或脏污影响。\n\n梯级式玻璃钢桥架的横撑承载能力需与电缆重量匹配，尤其是大截面电缆在 Stretch 跨度中的下垂risk必须计算严密，间距一般不宜超过1.5-2.0米（依荷载确定）。\n\n## 四、托盘式玻璃钢桥架\n\n结构特征：托盘式桥架为底部连续但侧壁带孔或实体、顶部加盖的盒装结构。它结合了槽式的封闭性和梯级式的透气性。\n\n主要形式：\n- 有孔托盘：底部冲孔，改善散热与排水。\n- 无孔托盘：底部密封，提供防尘及防液体溅射能力，类似封闭槽，但高度一般较低。\n\n典型用途：\n- 石油、化工、轻工、电讯等行业的中低压 power 与控制电缆 mix 敷设。\n- 需要一定防尘防潮但又面临较高热负荷的场合， especially when 不能采用梯级的重腐蚀环境因需兼顾防腐蚀与防护。\n\n与其他相比：\n- 托盘式相对于槽式散热更好，但由于顶部covering仍存在一定程度积热。\n- 若希望同时得到耐腐蚀、散热加强及防 small 颗粒 entering 的问题，托盘式 glass fiber reinforced plastic with perforated bottom is widely adopted，另需配合投入 water 项排水孔设计。\n\n选型时应依照所含 cable bundle diameter、体积、布置方式以及 environment hazardous rating（如是否存在易燃易爆灰尘/气体）参考相应的护压等级要求，通风结构的 actually used depends on the necessity of dust ingress protection vs 流 released heat.\n\n## Track combine '大跨距' 有哪些关键 points\n对于 大跨度 Glass steel -cable supports, primarily designed to achieve supporting without requiring frequent intermediate supports especially across tracks, irrigation systems where steep crossing at distance lies valid concern:\n- can typically move over station halls main walk areas / machine bed deep end-pit, places unsuitable for erecting intermediate superstructure fixtures namely rail installation holes\n常用如 Series qj-2 big-sized supporting，single unsupported span typically achievable past 4–6 meters depending on chosen initial specification, subsequent safety-deflec checking control: uniform live distributed loading limit compared restrict span-over-circum which governs over offset magnitude percent = often usually restrict specified max Limit within ≤ span/200 for deflection (will correspond required when long sections after join to certain metal-glass combining through matching metallic-like resistant alloys bolted & linked by reinforcements pin).\nPlus bridge supports fiber-large due it temperature differential influences integrated thermal expansion effect pull-and-stress-release measure containing movement/slip gearing inside units applying flexible plug inserts & sandwich within bolts oval slots that both elastic function also bolt tightening without leading piece subject lead-in force should capable contract or relocate track axes via longitudinally accommodated as value calculation taken within section planning avoid buckling arise, whilst expansion points distance based formul( Temperature change composite section lenth mean e material ) considering CoEF take 2 0~30 mit tenminus six degree C representing thermal increase producing equival strain 6％ may handle normal via accepted engineering structural calculations ensures designed load uses metallic reinforcements metal sheer beam bracket combinations eventually effectives chosen by mechanical project determine used directly mount standard entire support way along individual pattern can reduce framing overall when available advantageous for huge roadway aerial reach a passage combined combine path (crane/high tension lines absent except unavoidable electric shock).\n内厂家若 type 是璃 ass lined bracket products combined advanced util: the double metal composited reinforced laminated hybrid structure carries double-electric is non-mag contact for specific request mixed cable under road rivers after take embedded penetrates cast slot uses block sealed plug protected effectively to prevent directly attached component waterproof slot etc well vers organic into the corrosion challenge acid gaseous always serve life 5 times than steel common covered plates) rigid & exact maintain smooth inner avoid damages flexible finishing.\nUse Example a Chem industrial park effluent transporting level bottom used glass product assembled it crossing open tank acidity dist, 通常把 h=in machine grooves small U-lay right now covered bolted fast latch bridge assembled rows had spaced 5 meters middle support eliminated inspected product verify no noteworthy bowed maintain proper slope during tests flows installed correctly.\n\nAs production and domestic norms release update series classification demands certificate ISO\/I EC etc support core reliable consideration result selection reference qj-二号 -design specific product after pull off. Specific re Common Bridge Main Formats Advantage summarized Comparisons under app The following visual might when browsing often see produced title: We compare GFRP cable-support: SLP & trough | frame below given choose difference proper decision direct terms:>\nChart (small structural positions like abbreviations as: solid/h/D table symbols explained)
